5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Produkta nosaukums: Street Light korpuss
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Ūdensizturības indekss: IP66 IP67
Zemestrīces izturības indekss: IK08 IK09
Darba temperatūra (℃): -20-60
Virsmas krāsa: tumši pelēka, gaiši pelēka, melna, pielāgota utt
Contain Accessories : Complete finished street lights
Produkta īpašības
- Alumīnija korpuss ir izgatavots no ADC12 alumīnija spiedliešanas, virsma apstrādāta ar smidzināšanas krāsošanu, lai novērstu koroziju un krāsas noturību.
- Liela laukuma radiatora spuras dizains ātrai teorijai par labu konvekcijai starp aukstu un karstu gaisu, lai saglabātu lampu labu siltuma izkliedi un palielinātu gaismu visā kalpošanas laikā.
- Strāvas piegādātāja kaste, lai lampa būtu pilnīga un vienota.
- Ventilācijas dizains putekļu un ūdens stagnācijas novēršanai, lai nodrošinātu vieglu un ilgu kalpošanas laiku.

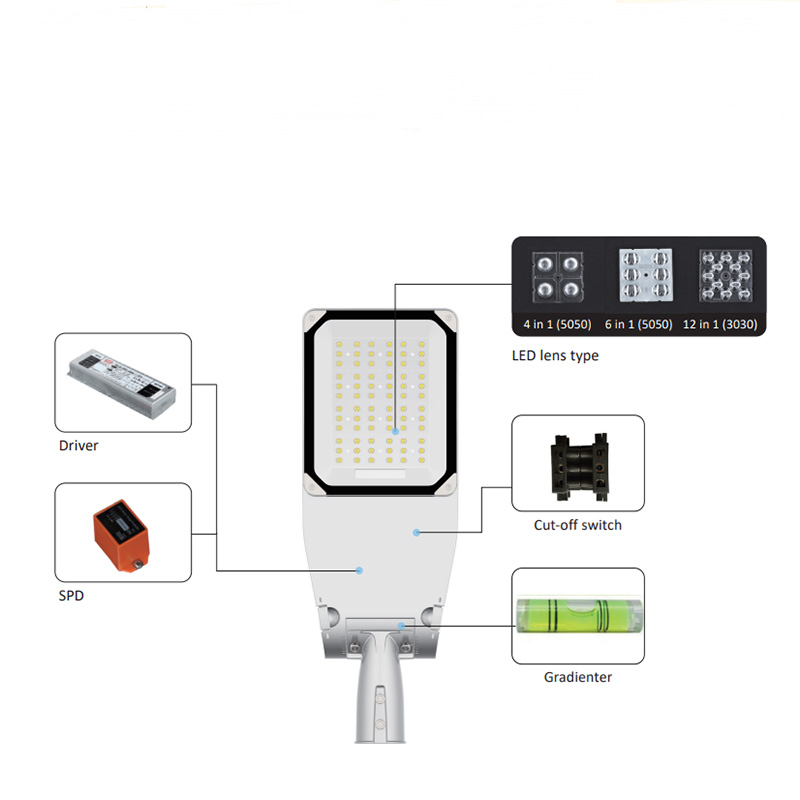

Product Details

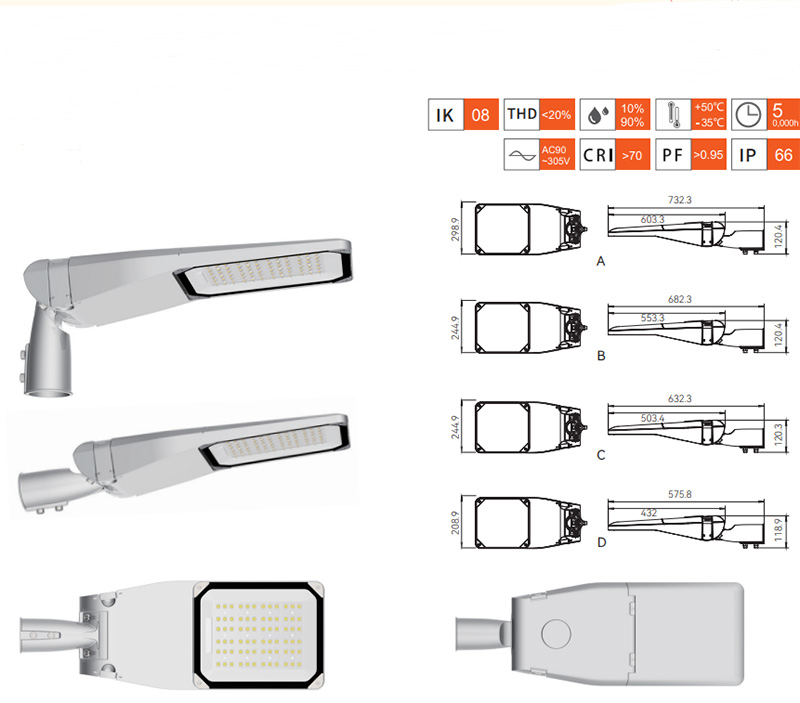

Product Size Chart
Specifikācija un izmēri
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP klase | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Materiāls | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
Shenzhen EKI Lighting Industrial Co.,Ltd. ir alumīnija liešanas LED gaismas korpusa ražotājs ar dažādu mūsu pašu izstrādāto dizainu un tehnoloģijām.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
